DEVON 大有 5766-Li-20 20V Brushless Impact Wrench, 1/2in, 550Nm (850Nm Breakaway) (HK Licensed 香港行貨)

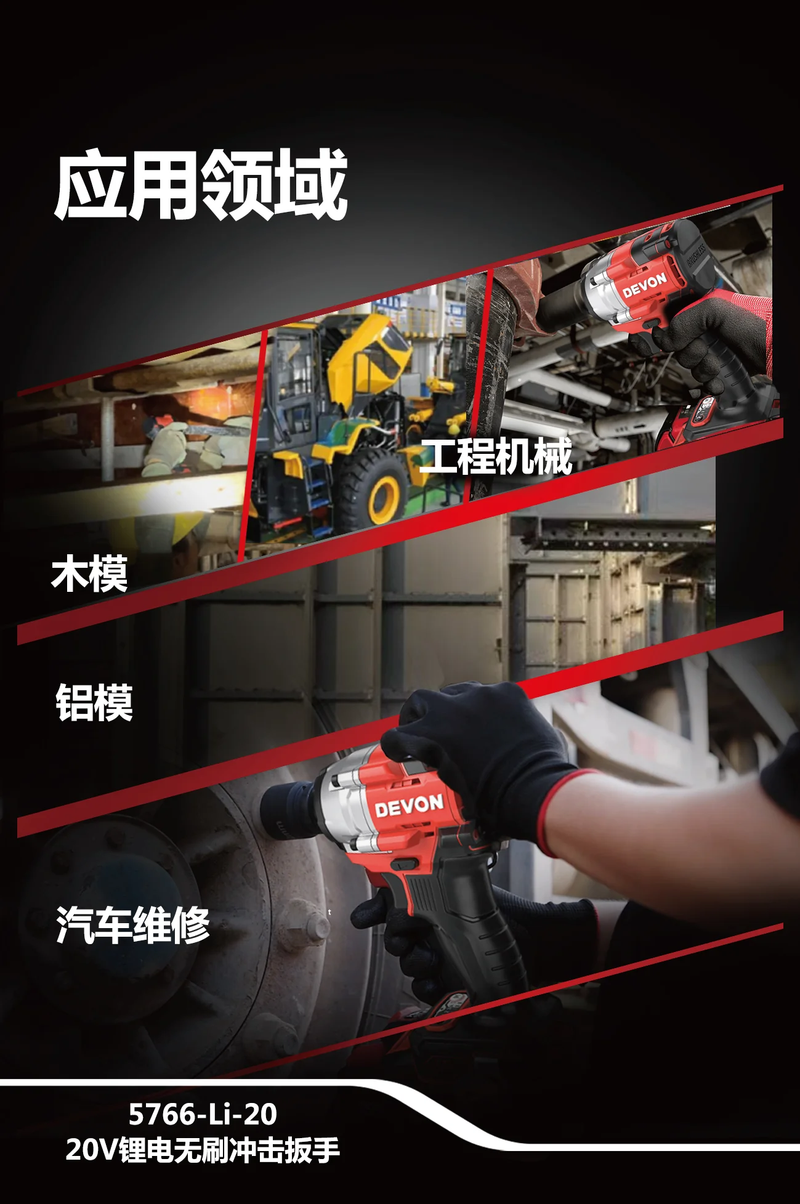

The DEVON 大有 5766-Li-20 is a 20V brushless 1/2in impact wrench with 550Nm of fastening torque and 850Nm of breakaway torque in a compact 124mm head. Auto-stop and wood-screw modes suit it to formwork, machinery and car repair as well as general bolting.

Key features

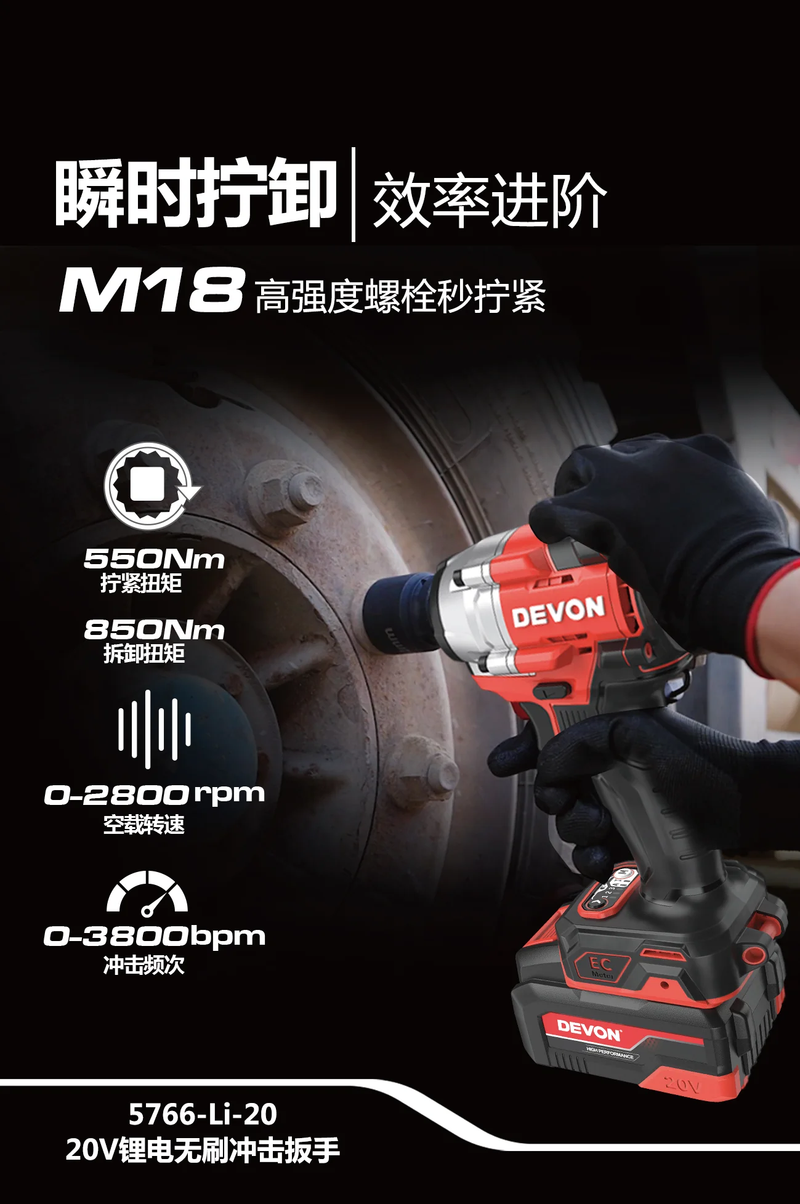

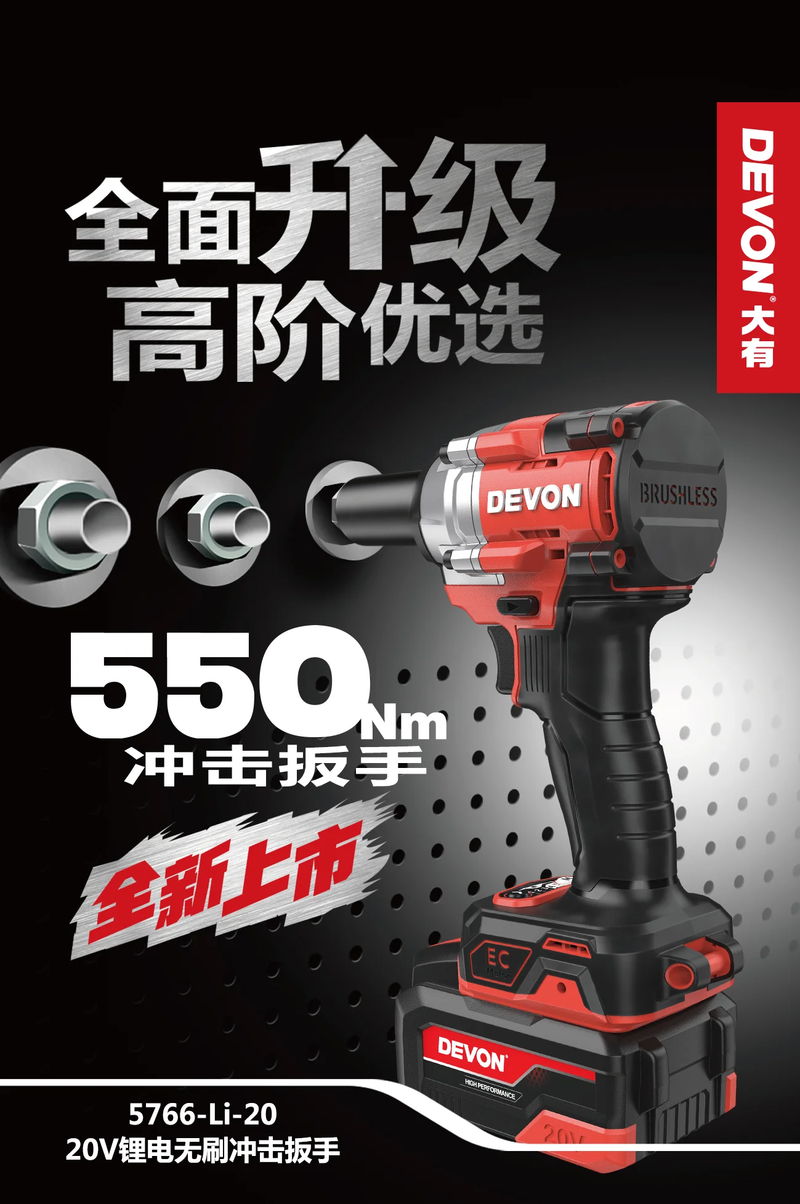

• Brushless motor: 550Nm fastening torque, 850Nm breakaway torque

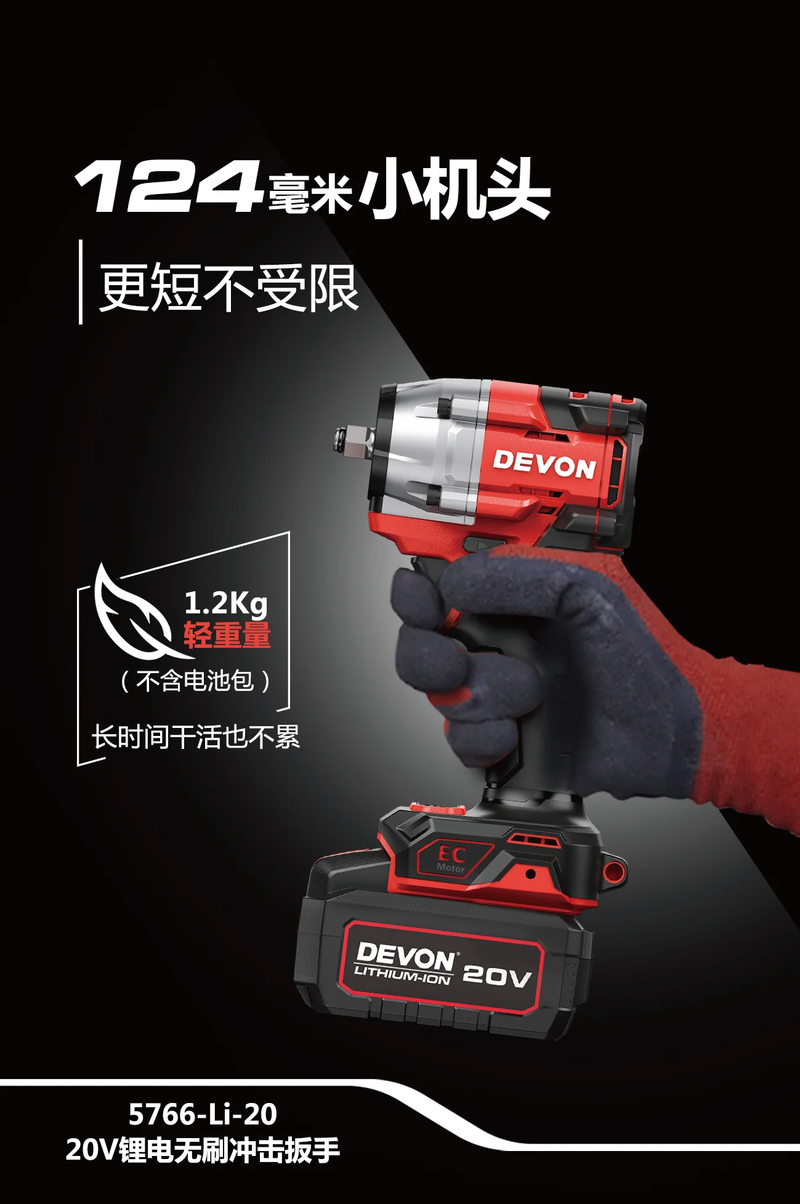

• Compact 124mm head for narrow spaces

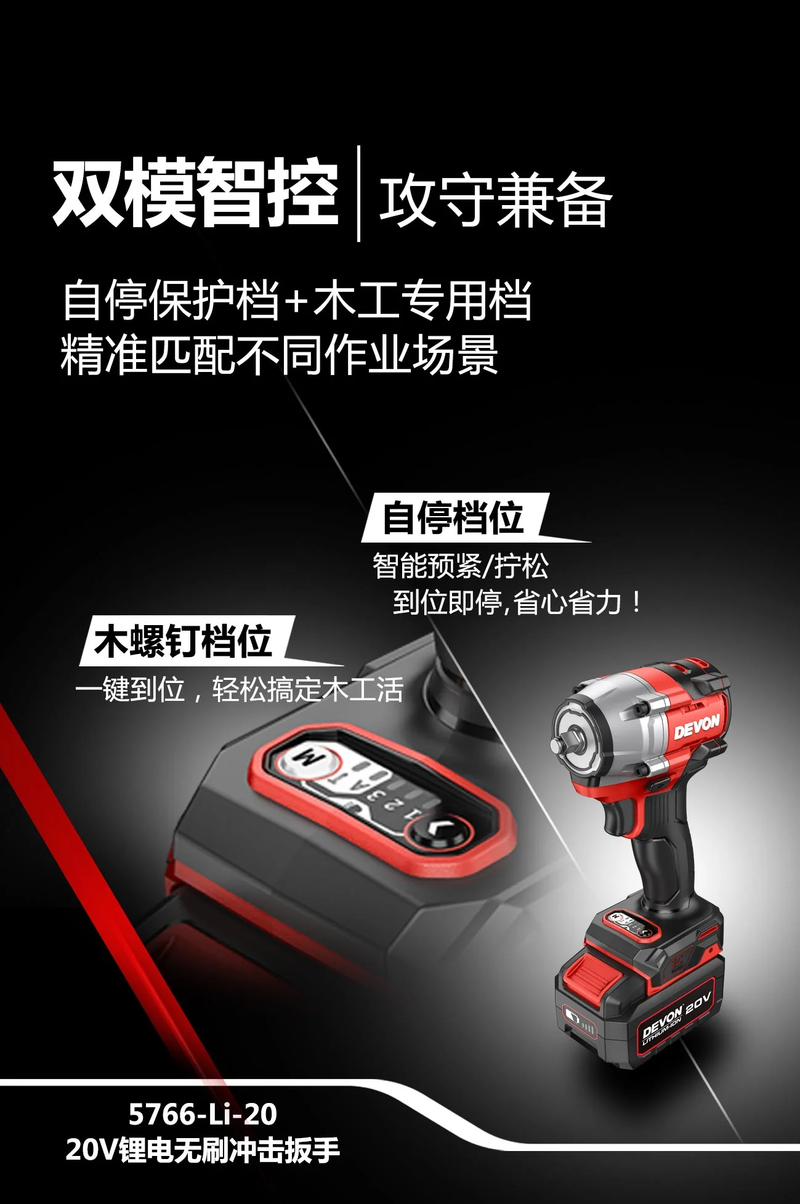

• 5-setting electronic control: three speeds plus auto-stop mode for removing bolts and wood-screw mode for driving and removing wood screws
• Light at 1.2kg without battery
• Shadowless LED light with 5 brightness levels
• Durable three-piece impact mechanism made of high-quality materials
• 1/2in (12.7mm) square drive, for M10–M22 standard bolts

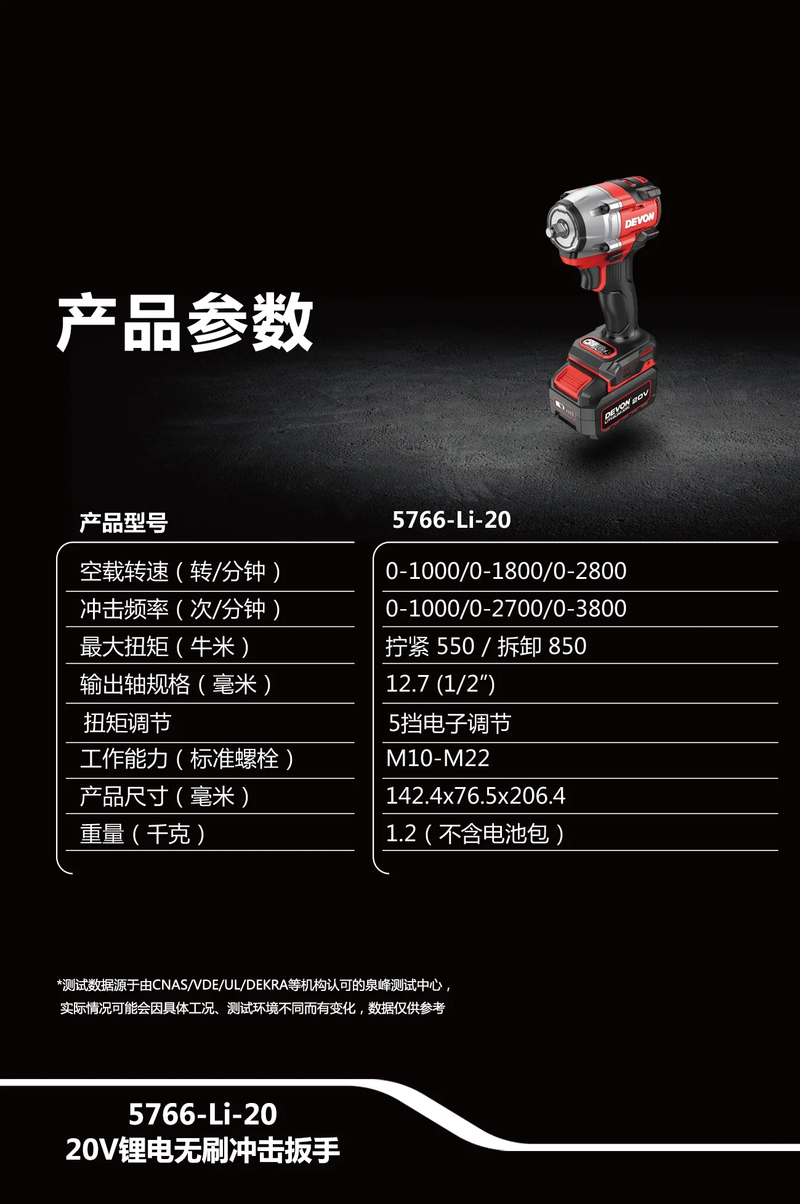

Specifications

• Model: 5766-Li-20
• Voltage: 20V, brushless
• No-load speed: 0–1,000 / 0–1,800 / 0–2,800rpm
• Impact rate: 0–1,000 / 0–2,700 / 0–3,800bpm
• Fastening torque: 550Nm
• Breakaway torque: 850Nm
• Torque control: 5-step electronic
• Drive: 1/2in (12.7mm)
• Capacity: M10–M22 standard bolts
• Tool weight: 1.2kg (without battery)
• Size (L × W × H): 142.4 × 76.5 × 206.4mm

Choose your option

• Bare tool: impact wrench only
• Combo set: impact wrench, rapid charger and two 5.0Ah batteries

5766-Li-20 exploded diagram
