Mitsuboshi B-Section V-Belt 日本三星 B型三角皮帶
Pre-order: prices coming soon. Message us for stock and a quotation.

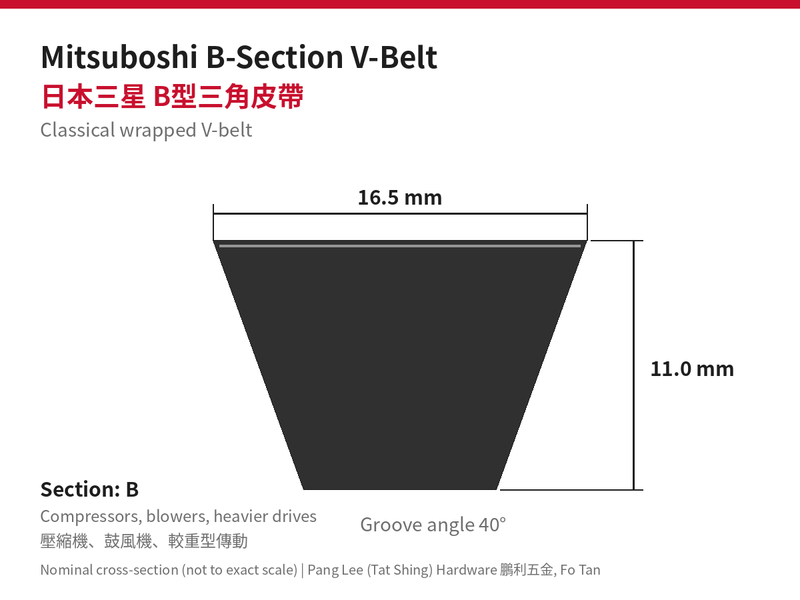

Mitsuboshi B-Section V-Belt (日本三星 B型三角皮帶) is a classical wrapped V-belt for heavier industrial drives, made by Mitsuboshi Belting, Japan and supplied to us through Mitsuboshi's official authorised distributor. Nominal cross-section 16.5 mm top width × 11.0 mm height, 40° groove angle.
Specifications
| Section | B (classical V-belt) |
|---|---|
| Top width × height | 16.5 mm × 11.0 mm (nominal) |
| Groove angle | 40° |
| Construction | Wrapped, Set Free |
| Working temperature | -40 to +70 °C |
| Standard | JIS K6323 classical V-belt |
| Sizes | B-25 to B-210 (nominal length in inches) |
Features
- Set Free: tight length tolerance between belts, so multi-belt drives need no matched sets. Replace one belt or the whole set.
- Low elongation and low shrinkage in service, for stable tension and long belt life

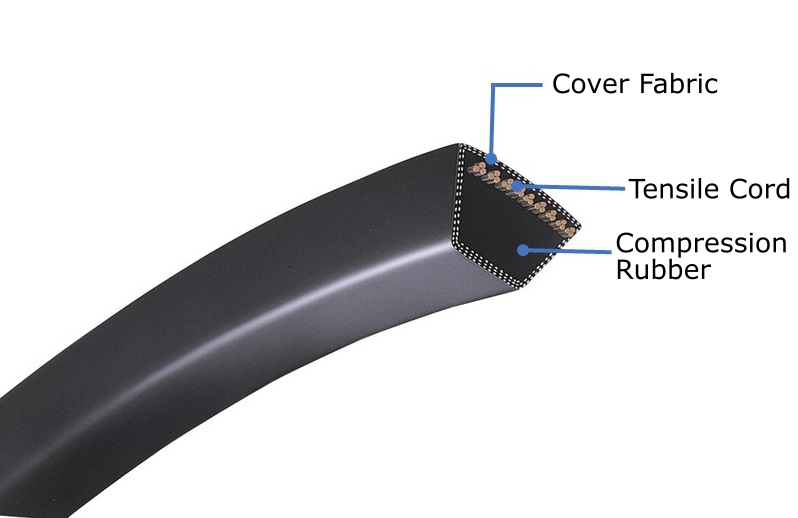

- Wrapped construction: a flexible, wear-resistant cover fabric over high-strength, low-stretch polyester cord and a rubber compound that keeps its shape under load
- Suited to compressors, blowers and heavier industrial machinery
How to order

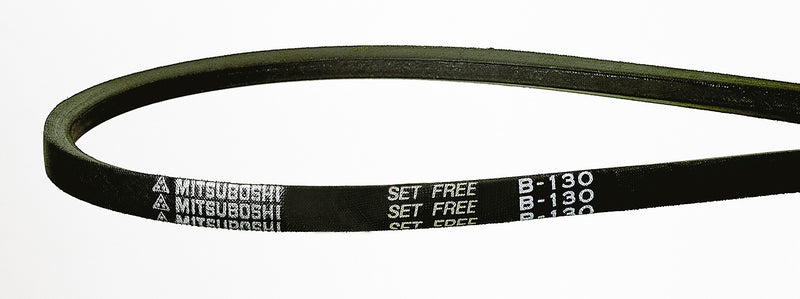

The letter printed on the belt is the section and the number is the nominal length in inches, for example B-130. If the print has worn off, measure the top width of the old belt and compare it with the table below.

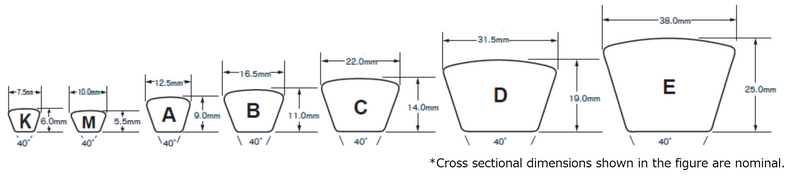

| Section | Top width | Height | Typical use |
|---|---|---|---|
| M | 10.0 mm | 5.5 mm | Small machines, light-duty drives |
| A | 12.5 mm | 9.0 mm | Pumps, fans, general machinery |
| B | 16.5 mm | 11.0 mm | Compressors, blowers, heavier industrial drives |
Narrow wedge belts (SPZ, SPA, SPB) look similar but have a different groove profile and cannot replace A or B belts. Not sure which belt you have? WhatsApp us a photo of the old belt with its measurements and we will identify it.
Other Mitsuboshi belts
We can also order other Mitsuboshi belts on request, including timing belts, conveyor belts, ribbed belts and automotive belts. See all Mitsuboshi belts we supply.
Pick-up
Collect from our Fo Tan shop, a 5-minute walk from Fo Tan MTR, or ask us about delivery. Pang Lee has served Hong Kong trade customers since 1994.
