Mitsuboshi SPB Narrow V-Belt 日本三星 SPB型窄型三角皮帶
Pre-order: prices coming soon. Message us for stock and a quotation.

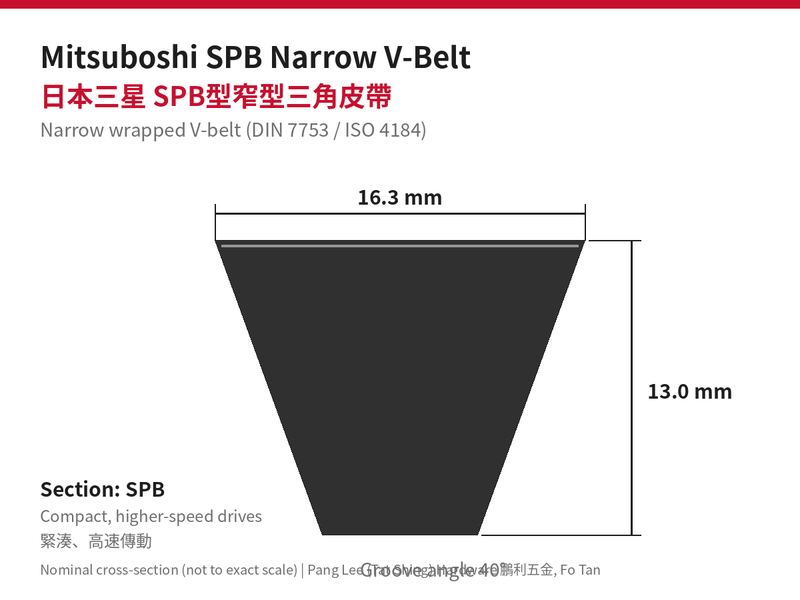

Mitsuboshi SPB Narrow V-Belt (日本三星 SPB型窄型三角皮帶) is a wrapped narrow V-belt for compact, higher-speed drives, made by Mitsuboshi Belting, Japan and supplied to us through Mitsuboshi's official authorised distributor. Nominal cross-section 16.3 mm top width × 13.0 mm height, 40° groove angle.
Specifications
| Section | SPB (narrow V-belt) |
|---|---|
| Top width × height | 16.3 mm × 13.0 mm (nominal) |
| Groove angle | 40° |
| Construction | Wrapped, Set Free |
| Working temperature | -30 to +90 °C |
| Maximum belt speed | 40 m/s |
| Standard | DIN 7753 / ISO 4184 narrow V-belt |
| Sizes | SPB 1250 to 9000 (datum length in mm) |
Features
- Transmits higher torque in a smaller space than a classical V-belt, so drives can be more compact
- Suited to high-speed drives and lower running and maintenance cost
- Oil-resistant and heat-resistant, with anti-static (electrically conductive) properties
- Cover fabric impregnated with chloroprene rubber over a high-strength, low-stretch cord
- Set Free: tight length tolerance between belts, for multi-belt drives
How to order

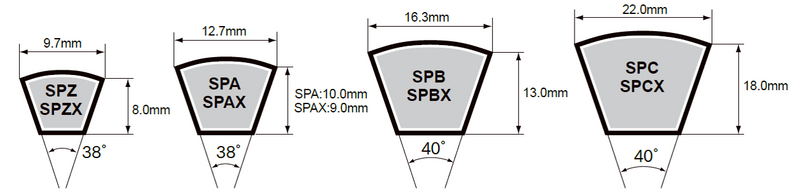

The letters on the belt are the section and the number is the datum length in millimetres, for example SPB 2000 (2000 mm datum length). If the print has worn off, measure the top width of the old belt and compare it with the table below.
| Section | Top width | Height | Groove angle |
|---|---|---|---|
| SPZ | 9.7 mm | 8.0 mm | 38° |
| SPA | 12.7 mm | 10.0 mm | 38° |
| SPB | 16.3 mm | 13.0 mm | 40° |
Narrow wedge belts look similar to classical A and B belts but have a different groove profile and cannot replace them. Not sure which belt you have? WhatsApp us a photo of the old belt with its measurements and we will identify it.
Other Mitsuboshi belts
We can also order other Mitsuboshi belts on request, including timing belts, conveyor belts, ribbed belts and automotive belts. See all Mitsuboshi belts we supply.
